    Photoshop Animated GIF Tutorial

    One of the main interests in Photoshop Training now is how to interact with social media. How to create banners for Facebook, Twitter, PinInterest and many more. The answer often lies with animated GIFS which are really simple to create in Photoshop. In this tutorial we will create an animated colour for a ficticious flower shop showing the different colours of the tulip’s they currently have in stock. Incidentally we’re going to be very exotic with the colour choices – I’m not too sure if tulips actually come in shades of purple.



    Photoshop GIF’s

    So, what exactly is a GIF?

     “The Graphics Interchange Format is a BITMAP format developed by a team at CompuServe led by American computer scientist Steve Wilhite on June 15, 1987” making it around 30 years old.



    Photoshop Tutorial – Objective

    In this tutorial I am going to show you a Frame Based Animation. I want to keep the whole image static apart from the flower which I want to change colour over a certain time.



    Let us begin……………..



    After firing up Photoshop open the image you want to animate and select the area to be animated

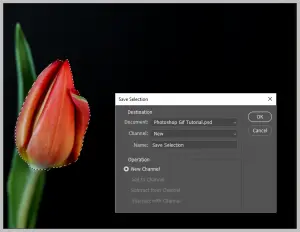

    In the image above I selected the tulip using the Quick Select tool.



    Click on Tools >Quick Select

    Click the area to be selected and draw across it using Quick Select

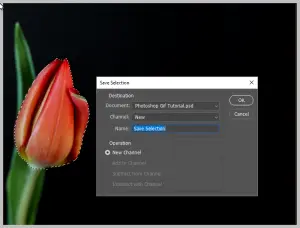

    Saving a Selection in Photoshop

    Because I want the selection to be in the exact same place on each layer for the animation I have saved the selection to reuse during the process.



    • Go to the Select Menu >Save Selection
    • In the Save Selection box make sure Channel is defaulting to New and give the selection a name
    • Click OK

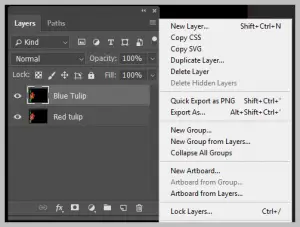

    Duplicate the Layer

    • Go to Layers Panel
    • Click either on the Layer or go to the Menu top right of the Layers Panel (as shown below)
    • Select Duplicate Layer
    • Rename the Layer



























    Change Colour using Hue & Saturation

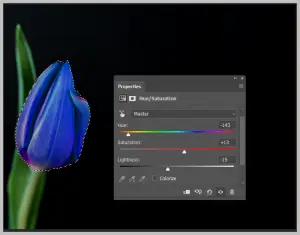

    Having created a second layer I now want to change the colour from red to blue

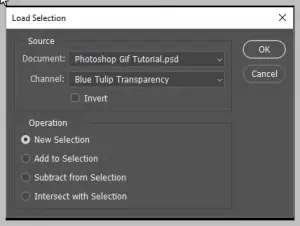

    • Load the selection made earlier
    • Make sure the correct selection is chosen in the Channel section
    • Under Operation make sure New Selection is chosen



























    Once the second layer flower is selected

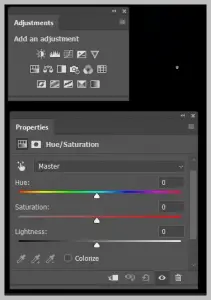

    • Go to the Adjustments Panel>Hue & Saturation
    • Adjust the Hue Slider until you are happy with the result



    *Using the Adjustments Panel to change colours etc is working in a none destructive workflow and means that no edits are permanent until you decided so. If you apply adjustments from the Image menu then this will be applied directly onto the image



    • Merge the Adjustment Layer down in the Layers Panel when happy with the result

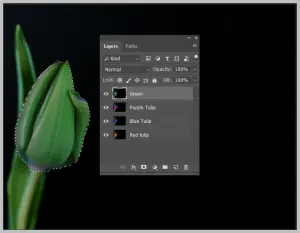

    Repeat the process until you have as many layers as you need.



    In this case for Photoshop Training purposes four layers are probably enough



























    What is Hue & Saturation in Photoshop?

    Hue – is the colour of the image

    Saturation – is the depth of the colour of the image

    Lightness – tends to the light & shadow of the colour



    Quick Tip on Hue & Saturation

    When using Hue & Saturation tick the Colorize box to create tinted imagery



    Try making a selection on a greyscale image and just tinting that specific region



    Animating the Image

    Now we are going to apply frame animation to the layers. To do this we need to use the Photoshop Timeline and the Layers Panel



    • Go to the Window menu >Timeline

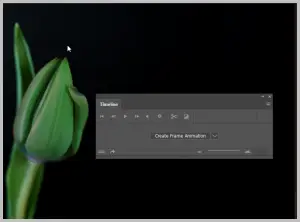

    Photoshop Tutorial - Timeline

























    • Turn off all other layers and select just the one layer you want to apply the first animation to
    • (In this case I selected the bottom one (the first) then click on ‘Create Frame Animation’ in the centre of the Timeline
    • See example below

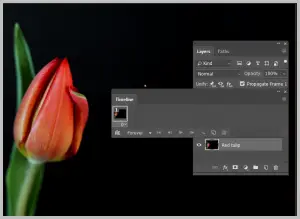

    Create Frame from Photoshop Timeline

























    • Repeat this process for each layer in the Layers Panel
    • Add New Frame from the Timeline Icon
    • New Frame button is found next to the Delete button on the Timeline



    Each layer should have its own Frame (as shown below)

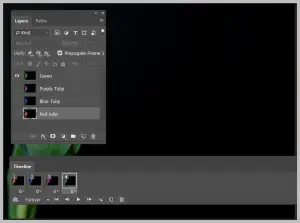

    Photoshop Frames, Layers and Timeline

























    All that remains to be done now is to set the timing

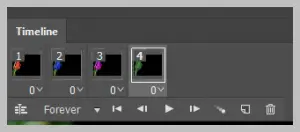

    Photoshop Timeline

















    • Select the Frame you want to adjust the timing on
    • Press the Downward Facing arrow and select timing. IE One Second



    Remember to Save As a GIF



    Finally press the Play button to watch



    Thank you for visiting my site

    Don’t have a good day, have a great one

    Greta



    Photoshop Gif Tutorial
